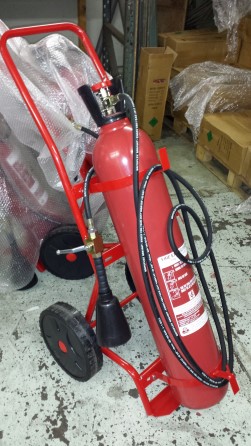

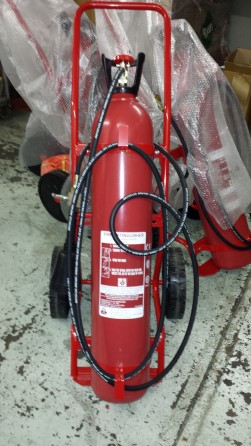

Carbon dioxide wheeled extinguisher.

The extinguisher is approved in accordance with EN 1866-1 and directive MED 96/98/CE.

EXTINGUISHING AGENT:
Carbon dioxide gas at 60 bar pressure, self discharging via a controllable valve.
CO2 is completely clean in use.
This extinguisher is suitable for class B; Flammable liquids including petrol, oil, fat & paints (B).
This extinguisher is not suitable for use on flammable metal.

TYPICAL USES:
Industrial field and live electrical risks i.e. switch gear and transformers.

Specification:
- Approval: UNI EN 1866-1
- Approval number: 1210 - 2009
- Extinguishing classes: 233 B
- Charge: kg 20 carbon dioxide
- Working pressure: 50 bar
- Safety valve: 18,5 MPa ± 1,5
- Utilization temperature: –30 +60 °C
- Discharge time: 25 s
- Range: m 11
- Cylinder: forging and extrusion
- Steel: 35 Cr Mo 4 UNI 7645
- Diameter cylinder: 200 mm
- Testing pressure: 250 bar
- Bursting pressure: 560 bar
- External treatment: sanding, 80µ painting with red polyester resin RAL 3000
- Internal treatment: none
- Dimensions: 1300 mm x 1160 mm
- Total weight: 68 Kg
