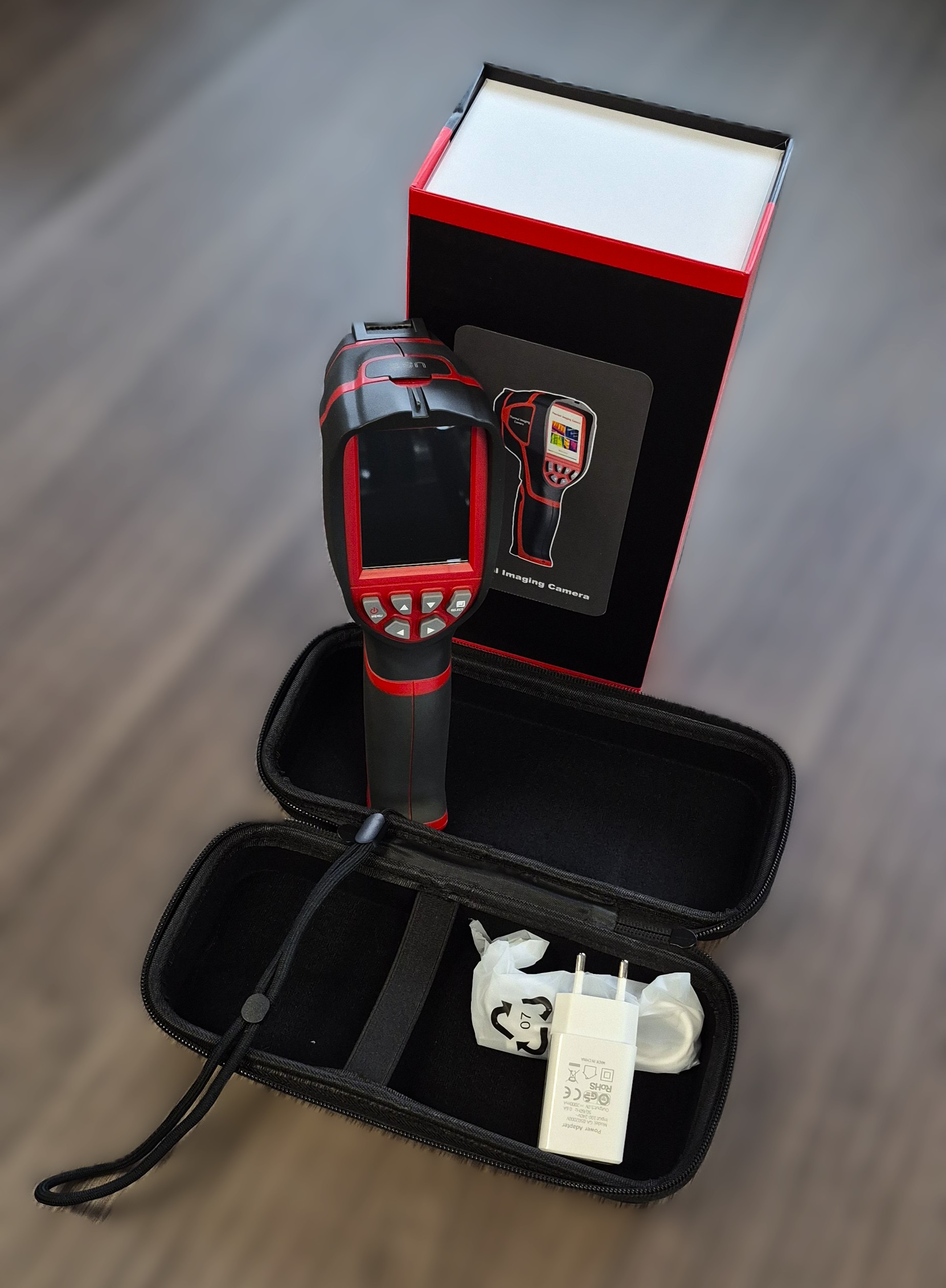

WT3320 Handheld Professional Thermal Imager

Optimize your industrial diagnostics with the Wintact WT3320, a high-precision handheld thermal imaging camera engineered for fast and reliable predictive maintenance.
This device combines surface temperature measurement with real-time thermal imaging to detect hidden vulnerabilities instantly.

Safe, Non-Contact Thermal Diagnostics
Maximize uptime and ensure operational safety without stopping production. The WT3320 uses non-contact detection technology, allowing ship technicians and facility engineers to scan entire electrical systems, mechanical machinery, and mechanical components from a safe distance.

Key Performance Features:

High-Definition Thermal Imaging:
Equipped with a crisp 320 x 240 IR resolution to display highly detailed temperature profiles on a 2.8-inch color TFT screen.

Dual-Camera Integration:
Features an integrated 300,000-pixel visible light camera, allowing operators to blend thermal and visual images for better component identification.

Smart Heat Tracking:
Automatically guides users to critical areas using real-time highest and lowest temperature cursors.

Adjustable Emissivity:
Features an adjustable radiation coefficient (0.01 to 1.00) to maintain measurement accuracy on reflective or semi-reflective surfaces.

Massive On-Board Storage:
Includes a built-in 3G storage capacity capable of saving more than 20,000 images in standard JPG format.

Streamlined Reporting & Asset Management
No need to measure components one by one. The WT3320 saves inspection time by capturing complete thermal scenes. Operators can easily transfer stored images via Micro USB to a computer to compile professional maintenance reports and audit trails.

Technical Specifications
IR Resolution: 320 × 240 pixels
Temperature Range: -20°C to 300°C (-4°F to 572°F)
Measurement Accuracy: ±2°C or ±2%
Field of View (FOV): 56° × 42°
Thermal Sensitivity (NETD): 70mK
Color Palettes: 5 (Rainbow, Iron Oxide Red, Cold Color, Black & White, White & Black)
